Lifting and sliding windows
Our manual and electric lifting windows as well as sliding windows offer a perfect combination of functionality and aesthetics. The electric option allows for convenient operation with a remote control or an app, while the manual variant offers an affordable and simple solution. All windows are made of high quality materials and offer long life.
The classic
SLIDING WINDOW TYPE AH50
Horizontal sliding window, electrically operated, suitable for increased security requirements in public spaces while maintaining slim profiles. In the standard version, the sliding window is satin anodized and equipped with 8 mm laminated glass - choose glass with polished edges for an elegant and aesthetically pleasing look.
The sliding window can be modified for a higher level of security, e.g. the P2A with 44.2 laminated glass. This modification can be done in a second step.
The frame can be powder coated, anodized in various colors or plated in stainless steel.
The sliding window is automatically locked in the closed position, interval locking is available as an option. Operated by a control switch with hold-to-run buttons.
Sliding window AV50
TECHNICAL INFORMATION
- Maximum width: 5000 mm
- Maximum height: 2100 mm
- Housing thickness: 50 mm
- Width of the side posts: 50 mm
- Lower profile height: 3 mm plus 6 mm guide
- Thickness of sash profiles: 20 mm // Glass with polished edges without vertical profiles
- Glazing: up to 20 mm

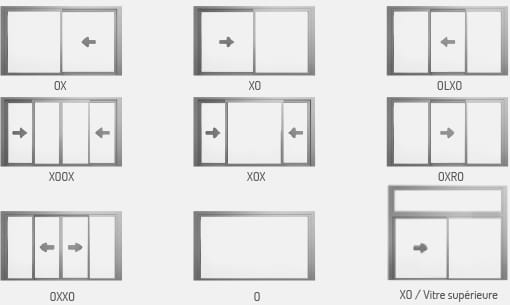

VERSION EXAMPLES
THE CLASSIC
SLIDING WINDOW TYPE AH60
Heavy-duty, horizontally sliding, electrically operated sliding window suitable for indoor use. The sliding window has a 60 mm thick aluminum frame and can be equipped with either insulating glass or 20 mm thick safety glazing.In the standard version, the sliding window frame is satin anodized and equipped with double D4-12 glazing.
The frame can be powder coated in the standard RAL color of your choice. The sliding window is automatically locked in the closed position and at intervals throughout the opening width. The sliding window is operated by a push button or foot switch.
SLIDING WINDOW AH60
TECHNICAL INFORMATION
- Maximum width: 5000 mm
- Maximum height: 2100 mm
- Housing thickness: 60 mm
- Width of side frames: 50 mm (53 mm for windows with ceiling lighting)
- Upper profile height: 45 mm (50 mm for windows with ceiling lighting)
- Lower profile height: 5 mm (plus 6 mm guide)
- Thickness of the wing profiles: 30 mm
- Glazing up to 20 mm
VERSION EXAMPLES SLIDING WINDOW AH60
Safety first
SLIDING WINDOW TYPE SH
The electric horizontal sliding window type SH is designed for both indoor and outdoor use. This steel or stainless steel frame allows the implementation of very large projects. The SH model is specially designed for installations that must meet strict requirements in terms of protection against attack or armed robbery. It can be equipped with any type of glass, from 6 mm laminated glass to 75 mm bulletproof glass. The sliding window is automatically locked. It is operated by a control box.
Sliding window SH
TECHNICAL INFORMATION
- Max. Width: To be calculated according to your project
- Maximum height: to be calculated according to your project
- Housing thickness: 50 mm or more
- Width of the side posts: 50 mm or more
- Upper profile height: 35 mm or higher
- Lower profile height: 3 mm or higher
- Thickness of the wing profile: 20 mm or more
- Glazing: up to 75 mm
VERSION EXAMPLES
THE CLASSIC
LIFTING WINDOW TYPE AV70
Electric vertical sliding window that adapts to the ever-increasing security requirements of public spaces while being discreet. In the standard version, the AV70 has a satin anodized finish and is equipped with 6 mm thick clear glass. If a higher level of security is required, 8.76 mm P2A laminated glass or 14 mm P6B vandal and attack resistant glass can be installed.
By eliminating the intersecting profiles and using polished edge glazing, you avoid interrupting the visual contact between the staff and the customer when the fixed part meets the moving part.
The AV70 model is available with one or two sliding sections to make the most of the available space.
The sliding window is equipped with a fall protection device and is automatically locked in the closed position.
The frame is operated by a push-button control.
LIFTING WINDOW AV70
TECHNICAL INFORMATION
- Max. Width: 1400 mm (2 sections) // 900 mm (3 sections)
- Maximum height: 3000 mm
- Housing thickness: 70 mm (2 sections) // 90 mm (3 sections)
- Width of side posts: 70 mm (2-part) // 90 mm (3-part)
- Lower profile height: Without profile
- Thickness of sash profiles: 20 mm // 30 mm (depending on glazing) // Glass with polished edges without vertical profiles
- Glazing: up to 20 mm
- Opening speed: approx. 200 mm/second

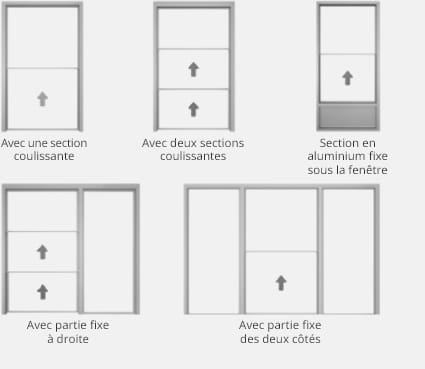

VERSION EXAMPLES
Window with one sliding section |

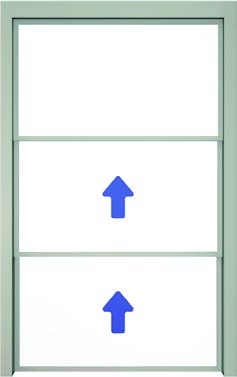

Window with two sliding sections |

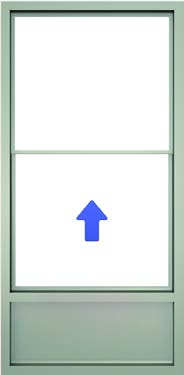

fixed aluminum section under the window |
with fixed part right |

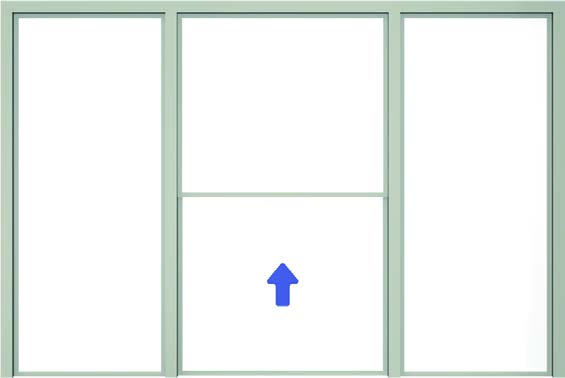

with fixed part on both sides |
|
The classic
LIFTING WINDOW TYPE AV90
Robust, vertically sliding window for wide openings. Suitable for indoor installation. The sliding window has a 90mm* aluminum frame and can be equipped with insulating glazing or laminated glazing up to 20mm thick. The AV90 model can be manufactured with two, three or more movable sections to have the largest possible opening.
The standard version of the sliding window is satin anodized and equipped with D4-12 insulating glazing. The frame can be powder coated in the standard RAL color of your choice. The sliding window is equipped with a safety lock that prevents the window from falling in the event of an accident. The sliding window is automatically locked in the closed position. It is operated by a control button or a foot switch.
* From 90 mm and more depending on the number of moving sections and the weight of the glazing.
Lifting window AV90
TECHNICAL INFORMATION
- Maximum width: 2000 mm
- Maximum height: 3500 mm
- Frame thickness: From 90 mm and more, depending on the number of movable sections and the weight of the glass.
- Width of the side posts: 60 mm
- Upper profile height: 70 mm
- Lower profile height: Without profile
- Thickness of the sash profile: 30 mm // Glass with polished edges without vertical profiles
- Glazing: up to 20 mm
VERSION EXAMPLES
|
Window with one sliding section |
Window with two sliding sections |
fixed aluminum section under the window |
|
with fixed part right |
with fixed part on both sides |
|
The classic
LIFTING WINDOW TYPE AV115
Robust vertical sliding window for large openings. Suitable for indoor or outdoor installation. The sliding window has a 115 mm thick aluminum frame and can be equipped with 20 mm thick insulating safety glazing.
The standard version of the sliding window is made of anodized aluminum and equipped with D4-12 insulating glazing. The frame can be painted, powder coated or anodized. The sliding window is equipped with a safety system that prevents the window from falling in case of an accident. The motorized sliding window is automatically locked in the closed position.
Lifting window AV115
TECHNICAL INFORMATION
- Maximum width: 3000 mm
- Maximum height: 4600 mm
- Frame thickness: From 115 mm, depending on the number of moving sections and the weight of the glass.
- Width of the side posts: 80 mm
- Upper profile height: 80 mm
- Lower profile height: Without profile // or 80 mm
- Thickness of the wing profile: 30 mm
- Glazing: up to 20 mm
VERSION EXAMPLES
|
Window with one sliding section |
Window with two sliding sections |
fixed aluminum section under the window |
|
with fixed part right |
with fixed part on both sides |
|
The Cool
NJORD THERMO SLIDING WINDOWS
Robust vertical sliding window for large openings. Suitable for indoor or outdoor installation. The sliding window has a 115 mm thick aluminum frame and can be equipped with 20 mm thick insulating safety glazing.
The standard version of the sliding window is made of anodized aluminum and equipped with D4-12 insulating glazing. The frame can be painted, powder coated or anodized. The sliding window is equipped with a safety system that prevents the window from falling in case of an accident. The motorized sliding window is automatically locked in the closed position.
Lifting window NJORD Thermo
TECHNICAL INFORMATION
- Maximum width: 3000 mm
- Maximum height: 4600 mm
- Frame thickness: From 120 mm, depending on the number of moving sections and the weight of the glass.
- Width of the side posts: 80 mm
- Upper profile height: 80 mm
- Lower profile height: Without profile // or 80 mm
- Thickness of the wing profile: 30 mm
- Glazing: up to 26 mm
VERSION EXAMPLES
Safety first
LIFTING WINDOW TYPE SV
The SV type electric sliding window is made of steel and can be used indoors and outdoors.
The SV model is specially designed for installations that must meet strict requirements in terms of protection against attack or armed robbery, or for specific projects such as swimming pool closures and very large projects. It can be equipped with any type of glass up to 75 mm.
This vertical sliding window is equipped with a safety system that prevents the sliding part from falling in case of accident. It is automatically locked and operated by a control.
Lifting window SV
TECHNICAL INFORMATION
- Max. Width: To be calculated according to your project
- Maximum height: to be calculated according to your project
- Housing thickness: 63 mm or more
- Width of the side posts: 45 mm or more
- Upper profile height: 45 mm or higher
- Thickness of the wing profile: 20 mm or more
- Glazing: up to 75 mm
VERSION EXAMPLES
